15 February, 2023

TECHNICAL SHEETS | STAR SYSTEMS | ARGOST

URR'UHRST̪θ' (Origin Point)

In hoku astronomy, Degazaakoza'pa (Dgazakzp) is the brightest system in the Sailboat constellation, during the summer in the southern hemisphere this constellation stands above the horizon pointing south, forming the base of the greater sail part of the boat. But across the Dominion it attends for its endonym Urr'uhrst̪θ', better known for its Human approximation Argost, and for Hoku travelers as Arihu'risitch (Arihurisit).

The name Argost actually refers to the homeworld of the Arrene, but this became a misnomer amongst their stellar neighbors, like mistaking the 'solar system' for 'Earth'. The star's actual name is noted down as Aa Rithel, or "The Sun" in common arrene.

Aa Rithel is an old single orange dwarf, and stars like it are found all throughout the Dominion.


STAR

parameters ID'd after HD 219134

AA RITHEL, The Sun

K3V orange dwarf star
Temperature 4700 K
        (in solar units)
Mass 0.80
Luminosity 0.26
Radius 0.77
Metallicity Z* ~1.28 [Fe/H]
Abs. Magnitude +6.30
Rotational period 8 days


PLANETARY SYSTEM

Aa Rithel's system possesses five planets, and one brown dwarf.

b) Unnamed rocky planet

A Mars-mass airless rocky world, its cratered and scarred surface is very similar to Mercury's.


c) Unnamed Venusian planet

A superterran wet Venusian, its high surface gravity didn't allow for the star's radiation to blow its atmosphere away, accumulating gas and vapors ever since its formation.


d) Ykaga, the Giant

A T-class brown dwarf at 0.54 AU, 27.44 Jupiter-masses and 12.12 Earth-radii, its upper atmosphere is full of alkali metals, carbon monoxide and methane at 830°C.

It has four satellites: Argost, and three unnamed Moon-like worlds.

The brown dwarf plays a dominant role across all ancient religions of Argost, it also dictates hot and cold days, as the planet slowly rotates away from it.


e) Argost, Origin Point

A terran tropical world orbiting at 12 million kilometers from the brown dwarf, at this distance the planet receives 0.15x solar constants from its parent, and 0.90x solar constants from its brighter parent, the mean surface temperature fluctuates between 30°C and -17°C along its orbital period. Being 2/3rds of the Earth's mass and 90% as large, Argost's gravity lies in the comfortable zone for every sentient race in the Dominion. Its day duration is about 80 hours.

The planet's surface possesses clean-cut preservation areas that can be observed from space, while the rest of the surface is speckled with a mix of beautifully planned urban environments and farming spaces.

The native population tops at about 6 billion while another estimated 15 billion other aliens live amongst them - despite that, it is quite rare to see an arrene at all, that is because the upper layers of their society live in luxurious space habitats or the city centers among themselves, the only the lowest ranking ones live in contact with other alien species, generally occupying roles such as police, army, private militias, town hall members, lawyers, weaponsmiths, ship pilots - with a few exceptions for those who focus their business towards exclusively alien clients.


TRIVIA & LOCATIONS

The political and economic capital of the Dominion is pretty well defended by hundreds of orbital defense platforms, inhabited by the wealthiest individuals of the Dominion apart from the arrenes themselves - but in such a wild and competitive place, there is no comfort without foul play. The descendants of bankrupt visitors and travelers overflow slums all over the place, its criminal and police brutality are unrivaled by anywhere else in the Dominion.

On Argost, as well as many capital worlds across the Dominion, the major cities form huge interconnected environments, with 30 to 100 million inhabitants, plus a few percent of travelers from across known space. The chaotic and stratified nature of the local society is a key piece of what keeps Argost and many other worlds under arrene control, keeping the rebels at bay with hunger and fire and petting the grateful so they don't rebel.

The largest and most populous city on the planet is Aa Iritesh'akar or 'The Enlightened City', it was initially built as a spaceport city to welcome visitors from the stars, being expanded over many millennia to accommodate more immigrants and their brood, some say that it hasn't completely lost its shine, you just need to stare at it longer to see it.

Getting things, products, and weapons out of any arrene spaceport is not difficult, a myriad of licenses is often needed for that though, the hardest of which is to pilot or transport any pieces of arrene tech newer than some 1000 years - as long as those weapons are not engaged in prohibited space, armed travelers will be spared of a really bad time. Contrary to the rest of the Dominion, clone-presence is minimal to non-existent in the capital, AI presence is unrestricted however, with many platforms working manual and tiring jobs for their owners as a form of extra income.

Although isolationist as a whole, many arrene groups and individuals show great interest in the affairs of aliens, both in their homeworld and across the Dominion, those more interested individuals work hard to be sent to outworld prefectures, science expeditions, or just opt to straight-out live and trade amongst commoners - living in rather high standards, of course.

There are 50 annular black peninsulas and lakes observable from space scattered across one hemisphere, a relic from the height of the Qiro-Arrene wars - the rock in the region is completely blackened from the first and last act of aggression between the two civilizations, created by a relativistic projectile launched from the only Qire warship that ever managed to pass the outer planets. The bombardment of Argost by the Qire fleet was the last episode of a war that ended up bringing the Arrene on the edge of extinction, had it not been for outworld colonies re-settling their homeland, Argost would likely be a dusty wasteland like the northern hemisphere of Hokushoku. The flattened cities offered space for ambitious and planned architectural projects, which are nowadays, the trademark of places such as Aa Iritesh'akar.

MORE COMING SOMEDAY!

- M. O. Valent, 15/02/2023

- M. O. Valent, last updated 21/09/2023

13 February, 2023

OTHER | SEEKING CREMATORIA-LIKE WORLDS | PART 2

PREVIOUSLY, ON HARD SCI-FI...

We want a planet that:

Is somewhat habitable, but only if lighting conditions are just right, that is - it has an overilluminated side and a dark side. In which case, life would need to move or cover itself when the surface passes through the overilluminated side, and do its thing when it is dark until day comes again. Like Crematoria from Chronicles of Riddick.

EXPLORING WAYS TO MAKE CREMATORIA REAL:

From the previous post...

  • Trojan planets around single stars
  • Trojan planets around binaries

 Now exploring...

  • S-type planets in close binaries
  • Dying binaries
  • Luminous black holes

LIFE BETWEEN TWO SUNS

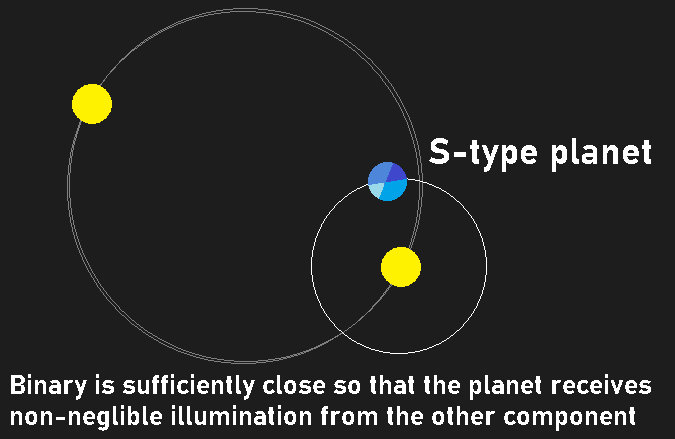

Since we've already discussed how binary systems work in the previous  post, let's jump straight into a sketch of my plan for this setting:



Now, although in my sketch the stars are set in a 1:1 mass ratio, that will definetly not be the case, both for being a lone binary, and because we will need a generous safe zone around our planet's orbit in order to have minimum gravitational disturbing from the other star.

Since our planet needs to be sufficiently illuminated by the other component, we can already infer it lives within a close binary, which means we will have other P-type planets in the system as well, and this world would be actually a captured planet by one of the pairs.

If we make the parent star sun-like and put the planet in the habitable zone, then we would have to put the other component at +3 AU away, which is observationally bad for us since the illumination of the secondary pair would drop down to <10% of the solar constant.

But if the parent star is small, such as a red dwarf or orange dwarf, we can put the other brighter star much closer, it also helps that we get a significantly larger planetary disk around stars with mass disparity like that. In that case we will explore two sub-scenarios, in which this mass ratio is 3:1 and 2:1, the most common mass ratios for binaries.

3:1 case, system must be smaller than 0.26x the orbital separation
A ~ 1.00 Msol, 1.00 Lsol, 1.00 Rsol, 5778 K - G2V yellow dwarf
    Mean HZ for A: 1.00 AU
B ~ 0.32 Msol, 0.03 Lsol, 0.40 Rsol, 3800 K - M0V red dwarf
    Mean HZ for B: 0.21 AU

Orbital separation set to be at least 4x that of component B's habitable zone, or about +0.80 AU.
With minimum requirements, the solid airless surface of the planet would be at 310 K or 37°C, but we can cool it down to about 20°C if the parent star orbits the brighter star at a distance of 0.93 AU. Slap it a moderately thick atmosphere at 0.5 bar for an Earth-sized planet, and we got ourselves a simmering 50°C of surface temperature, with some 70°C at the equator, for a 24 hour rotational period.

That average temperature will ocillate between 32°C and 79°C as the planet orbits and points towards or away from the brighter star, changing irradiance between 1.47x and 2.63x the solar constant. These changes occur very quickly over the course of 66 days, but the planet is tidally locked to its parent star, making it a seasonal eyeball planet.

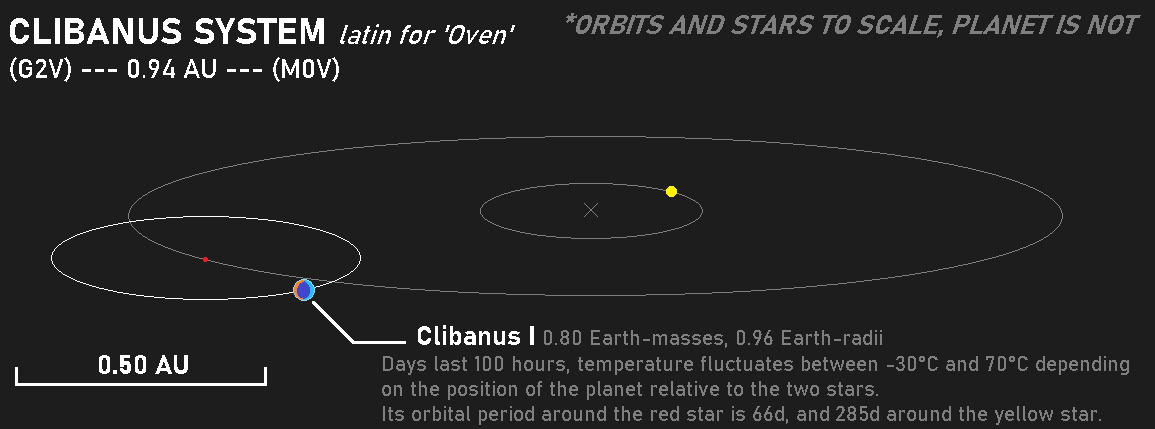

If we want to make it so it is not tidally locked, then the we can place it a bit further away at some 0.30 AU, decreasing the average temperature from 50°C down to 33°C, with an average irradiation of 1.50x the solar constant. Ocillating instead between 4°C and 87°C.


Because our red dwarf parent is quite large, we don't have to worry about sudden violent X-ray and UV flares even though we have a thinner atmosphere than Earth does. Plus, given we know the Earth's atmosphere cools at roughly 0.5~1.0°C per hour (depends on place, at my region it is roughly 0.8°C/h), we can tune the planet's rotation period to cool down to an acceptable level before heating up during the day, so if we want the temperature to drop from some 60°C during the day, down to 20°C at night, we'd have to set night-time duration to some 50 hours, which means our planet should have a rotational period of at least 100 hours to have decent cooling.

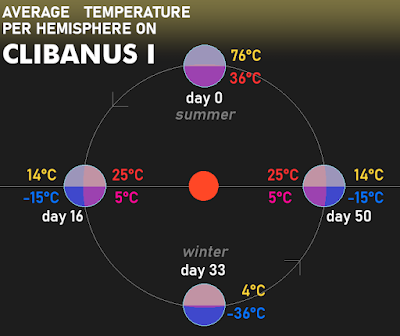

The rotational period of 100 hours bring the equator temperature to some 50°C as well, which means that during the night we have it dropping to 10°C. But that's only on the side of the planet which faces the two stars at once, we might not even have enough exposure time to hit some 70°C for most of the year. When the planet finds itself between the two stars the brighter side heats may cool down to some 14°C on average, and the dimmer side to a freezing -60°C. Because of the planet does not stop in this position for long, these potential extremes might not be reached, instead staying between well 70°C and -60°C in the equator across the whole orbit.
But temperatures might actually be stable and comfortable towards the planets poles given the softer ever setting suns or just by being in a temperate zone, though in general the whole planet's temperature changes drastically over the year.


We should also give it vast oceans, so we have ices and decent temperature buffers, so we don't end up with a venusian planet. Now, depending of the latitude, one will still get hot deserts during the day and freezing cold nights, and one half of the planet will always be considerably colder than the half facing the brighter star. So far, it seems we've accomplished our goal with moderate success.

After days in the dark, the brighter sun finally rises, thawing glaciers and lakes to form rivers which will flow fresh for the next two days until it sets again. Clibanus' thin atmosphere allows for stars and the system's outer planets to be observed even during the day, despite the radical changes in irradiation, flooded plains allow consistent liquid water for life

Compared to the original Crematoria, unless the atmosphere can dissipate the heat twice as efficiently as the Earth does, the planet of the movie cannot have 52 hour days, not can have the extreme temperature differences we see in the movie from 370°C to -180°C.

By default, this arrangement is pretty common and actually pretty likely to occur in nature, HOWEVER one thing I've stated at the start is that given  this planet is very close to the secondary star, it is possible that it is a captured planet, thus it might also sport other quirks such as high orbital inclination, high eccentricity, retrograde motion as well. The high eccentricity in particular seems like an interesting way to vary the temperature extremes even more, as well as varying the amount of water present in the planet's climate system.

For planets in more circular orbits, ie, that formed around the red dwarf, we are limited in how massive we can make that planet the same way we are limited with gas giant moons, in this case topping between 2 to 10 Earth-masses, which we could actually distribute in a planetary system of Terran and Subterran worlds which suffer from the same condition, but varying climates according to their specific atmospheres, water content, and distance from the red dwarf.

2:1 case, system must be smaller than 0.22x the orbital separation
A ~ 1.00 Msol, 1.00 Lsol, 1.00 Rsol, 5778 K - G2V yellow dwarf
    Mean HZ for A: 1.00 AU
B ~ 0.50 Msol, 0.10 Lsol, 0.57 Rsol, 4334 K - K6V orange dwarf
    Mean HZ for B: 0.39 AU

Now because our habitable zone around the secondary component expanded to double the previous orbital radius, we have to change the distance between the stars just a bit to accommodate those changes. So the system's minimum size, given the planet has to orbit within 22% of the orbital distance, is about 1.82 AU, orbiting every 2 years. This way, the star's hill sphere is about 0.8 AU in radius, snuggly fitting our habitable zone at 0.4 AU, and given our parent body is larger than the previous one, our planets can be up to 6 Earth-masses in size, even giving space for superterran worlds in orbit.

At such distances from the stars, the planet gets 0.63x and 0.30x the solar constant from its parent and the brighter star, respectively, being close enough to barely rotate instead of being tidally locked. Its equilibrium temperature is around -24°C, and it warms up to 10°C under 1 Earth-atmosphere. By setting the planet's rotation to 500 hours the equator is able to heat up to some 23°C.
When the planet is between the stars, the orange side drops down to -17°C and -4°C on the equator, while the yellow side to some -50°C.

We can already stop right here, as it was concluded from the last example and from the last post that trying larger stars help, but not a lot because of the greater distances involved.

DYING BINARIES
It is not (observationally) uncommon for a bright star to have a dead or almost dead companion in a binary pair, see the Sirius system, an A-type white star and its white dwarf companion Sirius B. However, since the Nova which forms a white dwarf most likely destroy the planets around it (if any survived the red giant phase) is too dim to provide any significant illumination, we will be looking at red giant pairs.

If we want planets in those systems to be habitable for a long time, then such systems would have to be either very old and originating from sun-like stars, or very young containing a sun-like star and a heavier pair. Whatever the case we choose, it will be composed of a star still in its main sequence, and a bright red giant. For the distances we can be somewhat liberal, alerting only for the absence or presence of planetary disks. Let's say that by the time our primitive planet starts developing complex life, our heavier star finishes its MS phase and starts diving into the red giant phase. A sun-like star spends two billion years in the red giant phase, with variable luminosity as time passes, very variable in the last few hundred million years, which means such worlds are pretty ephemerous. Let's use that as a basis, with a star that enters the sub-giant phase at the age of 4 billion years, setting the system's age half-way through the process. The chosen mass ratio is 5:2, still close to your typical common binary system.

A ~ 1.28 Msol, 2.47 Lsol, 1.22 Rsol, 6566 K - F5V yellow-white star (nominal stats)
Mean HZ for A: 1.58 AU
SUB-GIANT STATS:
Current Age: 4.48 Gyr, 400 million years until the Helium Flash.
Current temperature: 4000 K, it will continue to drop to 3000 K until the Helium Flash.
Current luminosity: 5 Lsol, it will continue to steadly rise up to 25 Lsol, before taking off to 2500 Lsol for the Flash in a short period of 100 million years.
Current radius: 2 Rsol, it will steadly rise to 10 Rsol, until inflating to 200 Rsol (1.9 AU) when the Flash happens.
Mean HZ for L ~ 5.0 and L ~ 25.0: 2.2 AU and 5.0 AU
B ~ 0.50 Msol, 0.10 Lsol, 0.57 Rsol, 4334 K - K6V orange dwarf
    Mean HZ for B: 0.39 AU

Just so we keep the secondary pair, and thus the planet, under a significant illumination from the dying star, the orbital distance will be about 3 AU. So as the ages pass, the planet will go from receiving 0.5 to 2.8 solar constants from the dying star, while getting a consistent 0.6x solar constants from its parent, so the total illumination will rise from 1.1 to 3.4 over the course of 400 million years. Under 1 Earth-atmosphere, the mean temperature rises from 22°C to 105°C over this period, staying about 20 degrees hotter than those in the equator. The coldest tropical nights in such a world simmer at 65°C, while the planet is more temperate towards the tropics, however, with such high temperatures, we need to make this a waterworld to buffer it all, or a dry rock so the clouds don't start a runaway greenhouse effect. We could also balance the temperature by smaking the planet smaller, which decreases air pressure and volcanism so we don't turn this world into a venusian right away. A half as thin atmosphere puts the planet on pair with the previous world even on the hottest phase of its life.

By varying the amount of water in the atmosphere and a little bit of the secondary star's eccentricity around the main component, we can better control the surface conditions, still obeying the same principles as before, though we now know such worlds will be flash burned when the subgiant becomes a red giant, elevating the mean temperature to about 850°C.

Given what we know from how atmospheres react to the incoming light of different stellar spectra, it is safe to say that once the insolation coming from the red giant exceeds 0.7~0.8 solar constants, the planet will be no longer habitable, for the amount of infrared the atmosphere receives can no longer be irradiated away to space efficiently, thus, the surface temperature rises several dozen kelvin for even the tiniest increase in luminosity.

Reproduced from Habitable Zones around Main Sequence Stars, JF Kasting et al, 1993

We can say for sure that our planet around a red giant won't be habitable for much longer than half of its life between main sequence and the helium flash.

Hence why whenever I set up a planet around red dwarfs I try to keep their insolation below 1.0 and above 0.5, one can go even lower if they wish to add brighter stars to the system, if those stars are considerably hotter, even a few percent more incidence will the job at illuminating and heating the planet up without tipping it over the edge of a runaway greenhouse event.
Though I admit a future me or one of my readers will eventually find something I overlooked or winged for sake of argument for this post series, after all, this is supposed to be an expositional guide, an exercise for you to explore other particular variations more invested than I was with those quick examples.

DO NOT GO GENTLE INTO THAT GOOD NIGHT

Ah yes, luminous black holes and their blanets (yes with a B, that's a thing). For the ones not familiar with the concept, it's the kind of scenario as presented in the movie Interstellar (2014), but for the ones not familiar with the inner workings of such systems, I must warn such systems in nature would be so rare and ephemerous that one might as well regard them as legendary oasis, from what I could find and understand.

WHAT KIND OF BLACK HOLES ARE SUITABLE?

Black holes are a very interesting class of objects for their extreme variety of sizes and surrounding structures. The smallest black holes are created by stars above 23 solar masses, when their core collapses at the end of their lifes, compressing a good chunk of its matter into an infinetly dense point, at least some 2.9 to 3.0 solar masses, the infalling material and subsequent radiation burst ends up bouncing back up and eventually spewing all of the star's upper layers away into space, hence why the resulting black hole is rather small compared to the star's mass. Such small black holes are called Stellar-mass black holes, for they have the mass of typical high-mass stars, and typically, those black holes are the most dangerous for civilizations, for they are very small to the size of a few dozen kilometers, zipping through space at stellar speeds, gravitationally interfering with other systems as they fly by, and worst of all, they are often very dark - because the are rather small, it is very easy for matter to orbit and catapult around it without getting even a tiny bit close enough to be shredded or absorbed into it, thus they rarely emit or posess detectable signatures but the light-bending their gravity produces.

Stellar black holes are also much more aggressive than heavier ones for their small size, with a virtual density much higher than massive black holes, that is, the density you would expect if it was a solid object the size of its event horizon - a person standing 100 event horizon radii from a 5 Msol black hole would experience a gravitational gradient between their head and feet of ~750m/s, leading to instant material failure of the astronaut and resulting spaghettification. Whereas this same configuration with a 1000 solar mass black hole causes a difference of only 0.02m/s, far more tolerable.

Massive black holes are gentle giants.

Larger stars produce large black holes nearly twice the mass of these, but since stars rarely exceed masses above some 50~100 solar masses, stellar black holes cannot get any bigger than some 10 solar masses. From this point onward things get strange, black holes can only get bigger by absorbing lots of matter and other black holes, which means that the larger black holes are often much ancient than most stars, planets, or even the galaxy it currently inhabits.

When we look at massive black holes and supermassive blackholes, those which range from thousands to millions of times the mass of the Sun, we often find those which are surrounded by large disks of infalling matter, accretion disks. As matter accelerates towards the black hole, it rubs against other infalling molecules, heating up to thousands of degrees, generating all sorts of radiation, including light - those are the Luminous black holes. Non-luminous black holes include the ones such as Sagittarius A* at the center of the Milky Way, with 4 million solar masses, it has barely any accretion disk, existing in the dark, puppetteering nearby stars around a seemingly empty region of space. The feeding rate of a black hole, or accretion rate, is limited by its Eddington accretion limit, which is how much mass can fall into the black hole, before the resulting radiation pressure of the accretion disk counteracts the gravitational force of the infalling matter, the brightest luminous black holes such as quasars, blazars, and young radio galaxies find themselves near this limit or at super-Eddington limits, when the black hole also absorbs the extra radiation it would emit despite greater accretion rate. For obvious reasons, blanets and stars cannot reside near such monsters, because they would quickly be disintegrated into the accretion disk.

However, one detail we have to pay attention to while looking to settle black holes with habitable conditions, is that for most of their life, black holes will exist in their dark form, while luminous black holes are rather ephemerous. A single black hole might go through several luminous phases along its life, feeding on unlucky stars for a few million years, then waiting in the dark for the next prey, hence why radio galaxies are always young, as their central black holes did not have enough time to clear their surroundings, so not yet in their dark phase.

The amount of radiation released from a luminous black hole is directly proportional to the infall of matter, sometimes a black hole will traverse a region of space with little more gas than usual and shine very dimmly with a ghostly echo, or sometimes a whole rogue planet falls in, quickly spaghettified into a bright accretion disk which, like the rings of Saturn, will last a few million years.

Because we want blanets, moons, maybe even other stars around our luminous black hole, the gas around it which is the precursos to all of these bodies will be likely of solar-composition, with some sprikle of metals and not only hydrogen gas like the interstellar medium. The black hole would have to be near the end of its feeding / luminous stage, as we still want an accretion disk as energy source, but not so large of an accretion disk it just disintegrates any rocks with dense x-rays. So if the Eddington limit says the max accretion rate is a few billionths of a solar mass per year, then we will lean towards trillionths of a solar mass per year.

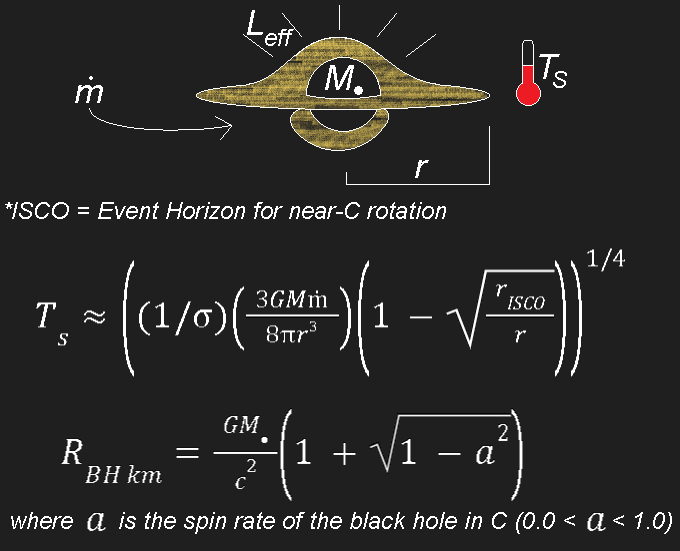

Because the surface area for an accretion disk around such black holes is immense, many times that of whole stars, the surface temperature of the disk should be star-like, between some 6000 to 2500 K, this works out to quite a headache of math when you're not familiar with the principles or equations behind it...



THE GENTLE GIANT

For an Interstellar-like scenario, we'll use a supermassive black hole about 100 million solar masses, spinning at 99.995% the speed of light, an ancient monster which hasn't fed upon anything for many millions of years, just now licking the breadcrumbs of its plate, that is, with a very thin ghostly accretion disk.


We're talking a 1.0 AU radii event horizon, with a disk that extends from 1.3 to 2.5 AU.

Our Eddington luminosity is around 4~6 trillion solar luminosities (depending on the gas makeup), with an accretion rate of 2 solar masses a year. So if we want the disk's Earth-like insolation zone to be at around 3 AU from the monster, we need an effective luminosity of 9 solar luminosities. So now we divide 9 by 4 trillion, we then get 2.25 trillionths of 2 solar masses, or 0.00012 Moon-masses a year. With a temperature between 288 thousand K near the ISCO down to 83 thousand K near the edge.

Even though the temperature is not enough for hard X-rays to be emmited through the ionization of metals within the disk, most of its emissions are still in the far UV spectrum. This can be avoided by increasing the opacity of the gas, making it partially ionized in a wider disk or toroidal cloud around the black hole. This makes the inner rim of the disk extremely hot while keeping the outer parts of the disk less hot, which means we need to lower the metal content of our gas cloud, or else the breaking radiation of relativistic electrons will increase the x-ray output of our accretion disk.

As for planetary formation around such objects, it would boil down to general rules of planetary formation, except the progenitor gas cloud would be the spewed guts of one or more stars devoured by the black hole, which for our purposes would have to be the black hole's last meal in a long time, or else the extreme x-rays would just photo-evaporate our blanets.

Those conditions will be very rare or even impossible to accomplish in real life, like, even a small rogue asteroid coming from interstellar space and falling in would increase the disk's luminosity by orders of magnitude - frying whatever life existed in the blanet surface. In the whole universe with its countless blackholes there might exist very few of those legendary oasis where conditions are just right, where life is possible hanging from a silk thread.

Because photon-matter interactions are rather too complex to bother going through, I'd admit handwaving most of them away would be the best course of action - for the sake of story telling, the habitable zone distances and time dilation regarding proximity to the black hole would have way more weight to it.

But realistically, given the many unknowns regarding radiation tolerances, a habitable blanet would look like the following:

Assuming the event horizon is some 10° wide in this image, the planet would find itself at 6 AU, receiving 1/4th of the Earth's insolation.
Would that be enough? I don't know, my IR correction equations are calibrated for stars, not massive accretion disks, the output for this case is right at the face of the event horizon inside the disk's inner radius, at 1.2 AU

An icy/oceanic superearth far far away from the black hole, some 10 Earth-masses and between 2.0 and 2.5 Earth-radii, the illumination is pretty dim compared to Earth's, but the incidence of x-rays and electron wind against the thick hydrogen/helium rich atmosphere reacts to produce scattered radiation, which warms it up to a tolerable temperature between 200 and 400 K. The atmosphere however would be rather anoxic, as the rays cannot penetrate very deep to react with the water or ammonia which pools on the surface as oceans, and any bacteria that develops here would be anaerobic, feeding on high energy or infrared light rays and minerals dissolved in the oceans, in a way, similar to Miller's planet - except much dimmer, much redder, and warmer.

For flavor we could add our habitable planet as a moon of a gas giant, or the more unlikely case - as the tidally locked planet of a red dwarf, working pretty much the same way as the first example from the start of the post, which seems to be the only viable way to obtain the desirable Crematoria-like effect

- M. O. Valent, 13/02/2023

08 February, 2023

TECHNICAL SHEETS | STAR SYSTEMS | VOLILOSHOKU

KOTALI'ZAPA (Great Wall Star)

In hoku astronomy, Kotali'zapa is the brightest system in the Great Wall constellation, during the autumn in the northern hemisphere this constelation stands above the horizon in a line with five other distant bright stars, Kotali'zapa being the brightest and closest of them. In Sidessian, the common spoken language of the system, the star has the name of Volkali, which means Belt Buckle in sidessian, as the peoples of the region saw the line of stars as belt constellation.

Kotali'zapa is a young triple-star system, and with its brightest component receiving the same name. The other two companions are a orange and red dwarfs in a binary configuration. This system configuration isn't particularly uncommon, though, the friendliest of worlds here is considered quite a spectacle to behold.

STARS

spectral type ID'd through temperature, luminosity might differ from real world stars with same type

KOTALI'ZAPA / VOLKALI, Alpha of the Great Wall / The Buckle

F5V yellow-white star
Temperature 6540 K
        (in solar units)
Mass 1.27
Luminosity 2.40
Radius 1.21
Metallicity Z* ~0.789 [Fe/H]
Abs. Magnitude +3.87
Rotational period 13 days


KOTALIMOKU, the Wall's Capitain

K8V orange dwarf star
Temperature 4010 K
        (in solar units)
Mass 0.39
Luminosity 0.052 ± 0.004 (x-ray variable) (64% visual luminosity of the Sun)
Radius 0.47
Metallicity Z* ~ 0.662 [Fe/H]
Abs. Magnitude +8.05.
Flaring BY Draconis variable star, emitting x-rays bursts every 36 hours.
Orbital separation from parent star 2.5 AU or 375 million km on average.
Orbital eccentricity 0.125
Orbital period ~ 3.0 Earth-years


NIGUTAL'ZA, the Wall's Spotter

M1V red dwarf star
Temperature 3655 K
        (in solar units)
Mass 0.29
Luminosity 0.0025 ± 0.01 (x-ray variable)
Radius 0.35
Metallicity Z* ~1.35 [Fe/H]
Abs. Magnitude +9.07
Flaring BY Draconis variable star,  emitting x-rays bursts every 40 hours.
Orbital separation 0.32 AU or 48 million km on average.
Orbital eccentricity 0.112
Orbital period ~ 80 Earth-days


PLANETARY SYSTEM

Kotali'zapa systems posess five planets, four of which are located around the binary dwarfs.


b) KOGEZA, the Giant

A pale blue hot-jupiter around of Kotali'zapa at 0.67 AU, 1.74 Jupiter-masses and 11.8 Earth-radii, its upper atmosphere is full of sulfides and chlorides at 140°C.


c) VOLILOSHOKU, the Fixed-Shadows World

A superterran with a shallow global ocean, in which native harmless microbes thrive, the world was once home to chelok and hoku settlers long before the Fall of Hokushoku. For being locked in the L4 lagrange point of the star Nigutal'za, the two dwarfs are set fixed in the sky from the planet's perspective, hence, it was aptly named Locked- (vo) -sunbean- (lilo) -world (shoku). Though, this planet along with its star take about 80 days to orbit their parent star Kotalimoku, so the whole system slowly turns along its orbit, pointing the planet towards and then away from the brighter star at the center of the system, giving it seasons in cycles of 80 days.

It gets 0.75x solar constants (and 0.5x luminosities) from its two parent dwarfs, plus 0.38x solar constants (and 0.4x luminosities) from the brighter star, on average. This makes the planet's temperature stay around 4°C, but over the course of those 80 days the temperature fluctuates 26 K above and below that average, and over the course of 3 years it ocillates more 22 K above and below whatever the current average is because of its eccentricity around the brighter star. For an observer in the tropics, the water would at times simmer at 60°C during the hottest summer, or freeze at -34°C in the coldest winter, getting even colder towards the poles of the planet, and at night, where it has reached historical lows of -150°C.

Those extreme and fast temperature variations create all sorts of climate intempers, rainstorms, hailstorms, and hurricanes are the default weather here, while seeing a beam of sunlight through the clouds in a day without wind is considered a gift from the gods.

However, despite the attractiveness of setting up a settlement in the equator, the x-ray bursts of the two parent stars would make maintaning a health standard, as well as exploring the surface, quite problematic - so both ancient chelok, and hoku settlers arrived to the conclusion that one has to inhabit the chilling poles of the planet to live on the surface, or build underground facilities in the twilight zone. The largest hoku settlement was the capital Kipishahit (Turning-Table, I suppose this has something to do with the clay-rich soils), though various smaller settlements existed throughout the planet, and the only reliable mode of transport over long distances is to fly, or wait until nightfall to run trucks over the ices.


d) NIGUTALINE

A rocky terran around Nigutal'za, its temperature varies between 140°C day side to -140°C on the nightside. Its barren surface is peppered by craters, while sporting solified lava flows, the geologic record tells that this was once a wet venusian kind of world, having its atmosphere blown away to a thin ghostly veil, its polar ices form gigantic pillars and glaciers. The ices were once mined here and taken to space habitats around the binary.

e and f) Unnamed Waterworlds

Planet e and planet f are two massive seasonal waterworlds, they get little light from their parent dwarf stars, instead, their main light source being the bright star. The thick atmospheres are able to hold onto decent heat and water in the surface, which freeze at -60°C during winter, and melt at 20°C during summer over the course of 3 and a half years. The atmospheres of these worlds however are made predominantly of nitrogen, oxygen, and ammonia, in proportions not suitable for life, the ammonia clouds and vapors are not enough to deter the harmful sun's rays, so they were not chosen by the colonists upon arrival back in 1150 SE.


TRIVIA & LOCATIONS

The extreme X and UV rays Voliloshoku gets every few days are the primary source of oxygen in the atmosphere, at it breaks down water and carbon dioxide into oxygen, sooth, and organics in the upper atmosphere, which rains down to the surface. The bacteria in liquid water metabolizes whatever it can while it is warm, leading to huge blooms which last a few weeks, producing a foam and a thick sirupy substrate or slime made of sugars, mucins, proteins and vitamins which they do not need during the day, starting to feed upon it as the temperatures drop and night comes. The substrate forms a hard leathery cover when exposed to the cold which insulates ponds from x-rays and the freezing temperatures outside, with some strains of bacteria here being commonly farmed for food by colonists.

A historical population of 1.2 billion colonists once inhabited the planet, making up for 4% of the Expanse's native population, being the 4th most populated outworld.

Theories suggest that Voliloshoku had a much thinner atmosphere in the past, but due to volcanism and intense photolysis of its water, it has been thickenning by a measurable amount every millenia. This would explain why, despite the current inhospitable conditions, this planet has this kind of primitive life, however doomed to extinction in a future Wet Venusian.

MORE COMING SOMEDAY!

- M. O. Valent, 08/02/2023

- M. O. Valent, last updated 15/02/2023

x

05 February, 2023

OTHER | SEEKING CREMATORIA-LIKE WORLDS | PART 1

CAN THE SUN BE A DEADLY LAZER?

Alright, let's establish some objectives with the rush of ideas, we want a planet that:

Is somewhat habitable, but only if lighting conditions are just right, that is - it has an overilluminated side and a dark side. In which case, life would need to move or cover itself when the surface passes through the overilluminated side, and do its thing when it is dark until day comes again. Like Crematoria from Chronicles of Riddick.

We will explore different scenarios in which that world might exist, and rank the possibilities from Natural / Realistic down to Designed.

One first idea that came to mind was to add more stars to the system, and organize them in such a way as to cause the desired effect... Can it be done?

RECAP ON DOUBLE STAR SYSTEMS

The illustration above sums up a simple case and a generalization of the conditions in which protoplanetary disks form in binary systems. Here we see that circumbinary disks occur only when the orbital separation is around 3-ish AU or less, and we don't see any disks around either star up to at least 50 AU separation between them - this occurs because given eccentricity of the system, no sufficient mass might be able to clump into a protoplanetary disk either because the stars scattered it all around a circunstellar cloud / off-system, or because all of the mass was consumed by the developing binary. Once distances are sufficiently large is that we start to see disks around either or both stars.

Such observations of primitive star systems tell us for example, that we shouldn't expect any planets around Alpha Centauri A or B stars, but on Proxima Centauri - which checks out so far as our telescopes are able to detect.

The dimensions of the protoplanetary or circumbinary disk in our binary system is quite important so we know what constraints the natural formation of planets and asteroid belts in our system.


As a general rule, the inner radius of the circumbinary disk is roughly 2 ~ 3 times that of the orbital seperation between the stars, and depending on the actual mass ration between the stars, a debris belt might be present in the inner system from material that was unnable to accrete into planets. BUT WATCH FOR THE MASS AND SEPARATION.


The example above highlights the need to give attention to either orbital separation or mass of the binaries in question. The case presented ends up being a sterile gas giant system because the star configuration pushes the stability zone way past the snow line of the binary (~1.2 AU).

This system can be made much more friendly to Earth-like planets or moons if the stars have greater mass, and thus more luminous output towards planets so far away. Or conserving the stars but increasing their orbital separation until we get a system around either or both stars, in which case it would be over 100~1000 AU wide.

It is possible to have both P-type and S-type planets in those intermediate distances, as long as the systems are relatively packed.

For an eccentricity of 0.2, the following is a good approximation for the outer limit of the star's planetary system:


Which results in larger limits the smaller the companion is, since its gravitational effect diminishes with mass, and the larger is the mass difference between stars, the more circular are the planets orbits around them. The planet's orbital eccentricity gets higher the more eccentric and similar are the parent stars, tending towards 1/3rd the eccentricity value of the parents as it approaches 0.5. So we would expect that the planets around our previous example to have a eccentricities of less than 0.06, which is actually more circular than the Moon's orbit around the Earth.

Given the luminosity of the stars in the example is 0.37 solar luminosities, if we want a planet on the circunstellar habitable zone at 0.6 AU with 2 AU to spare, then we have to space the stars such as that the Dsk_outer/separation value is equal to some 3 AU in this case, which ends up being 8% of the total separation by proportion, since both stars have the same mass. This gives us a minimum separation of 37 AU! If we get more conservative with the room to spare part, we easily arrive at separations far above 50 AU, which is confirmed while looking at binaries in space.

As for how far can circumbinary (P-type) planets orbit the binary, we can only estimate based on some real-life examples. COCONUTS-2b orbits its parent at distance of 6,000-7,000 AU, but remember that its system lies in deep interstellar space and might be easily disrupted by future star flybys. Given the mass of 6.3 Jupiters for the planet, and 0.37 solar masses (typical of cited M3 stars), the gravitational pull is close to 540,000 teranewtons, using F = GMm/R².

Referring to that value of 540,000 teranewtons as close to an upper limit, then the maximum distance we can put a similar planet around our binary pair is around to 14,100 AU. While the minimum distance would be above 3x the orbital separation, or greater than 110 AU, sadly too far into the depths of space for any life, but a P-type planet nonetheless. The vast distances involved for allowing P-type planets are also why they are such a rare find in nature.

Now that we've recollected everything essential into configurating such systems, let's talk about...

LAGRANGE POINTS

They are equipotential regions of space, where both the parent and satellite mass exert similar amounts of force over.

These Lagrangian points exist between the two bodies at L1, opposite to the satellite at L2, opposite to the parent at L3, leading the orbit at L4 and trailing the orbit at L5.

In the solar system, the most notable lagrangian objects are the Trojan asteroids, which lie in the L4 and L5 points of the Sun-Jupiter system.


Now, because the "size" or "strength" of the Lagrange point is dependant on the system size and mass, the greater the mass we can shove into those points and get away with a stable system.

We have to note here that due the distances involved, the points L1, L2, and L3 are all too unstable for significant stay of any bodies, which is why we use them as gateways / low-effort insertion points for spacecraft, as you can quite easily travel through them. Points L4 and L5 are more forgiving for stability and degree of precision needed to hang around.

Going over planetary masses and doing a bit of equation balance, we find out that equation is only satisfied if the mass disparity for the primary body is gigantic, that is, if it holds 96% or more of the system's mass, which leaves us with 4% of the primary body mass to distribute amongst our satellite and Trojan-like body.

Back to the Sun-Jupiter system, the Sun being 1040x the mass of Jupiter - it easily comports at least another Jupiter-mass object at either lagrange points because of how extreme is the mass difference. Though such extreme cases are unlikely in nature, because of the way planets form and disturb nearby material during the formation process, hence why we have some asteroids with negligible mass as trojans, not whole planets.

T-TYPE  for 'TROJAN' PLANETS

For this to work out, we'd need a brown dwarf if our primary star is Sun-like, in which case, that brown-dwarf doesn't play a large role in illuminating the planet at all. If we want the secondary star be at least a red dwarf, then the primary star would need to be B7 blue giant star - that is also bad for us because blue stars are extremely short lived, just shy of 60-100 million years, enough to develop a primordial planet but no native life.

Say we want this system to live at least some 4.5 billion years, then our primary options are stars with up to 1.2 solar masses. That leaves us with up to 0.048 solar masses for a high-mass brown dwarf, low-key an actual flaring red dwarf (L0 or M9 type), with 1/1000th of the Sun's luminosity.

Located at either the L4 or L5 points of a double star system, such planets would have both suns fixed in the sky always at 60° apart, under the right conditions it is day in 2/3rds of the planet's surface at any point, and only truly night on the other 1/3rd.

But can we make it work? Uhhh... Kinda

My rendering of such hypothetical scenario, illumination is not realistic for viewing purposes

APPROACH 1: USE BROWN DWARFS
In this case, we give the planet a very slow rotational period, like +100 hours, this makes the planet have a very inefficient heat distribution, as when the night side turns back to the day side it had time to irradiate most of its energy. This is attainable in a three ways; the planet the is the tidally locked satellite of a gas giant, this way the orbital period of 4-ish days is the same as it's rotational period; or the planet has lots of moons, which slow the planet down over time; or the planet was struck in the deep past by another smaller planet, thus counter-acting its rotational momentum, or even, it has a slow retrograde rotation like Venus because of it.

We can also make this planet relatively small, so its volcanism and mass doens't make it retain a thick atmosphere, which would make this site unbearable due greenhouse effect.

And then we position such planet bit closer than what the habitable zone says it's safe, like 0.80 ~ 0.90x that distance.

The result is a world that gets near 1.5x as much sunlight as Earth (from the main star), but the thin atmosphere and amount of solar exposure would certainly be deadly to many known organisms. It might sound like a lot, given the Earth hasn't always had UV protection with ozone, but let's consider that the Earth's atmosphere has also been thicker in the deep past, but due atmospheric escape and gases becoming trapped in rocks, it has been getting thinner over time, which not only would have granted that Earth did not freeze in the Sun's early days as a main-sequence star, but also makes the planet habitable under the amount of sunlight we currently receive.

With a world getting that much sunlight from the start and having a thinner atmosphere with a slower or non-existent rock recycling process, we maximize the amount of radiation we can possibly get on the surface. The presence of liquid water on the surface also changes our outcome, since oceans are good heatsinks, the less water we get, the hotter it gets during the day, the colder are the nights. So we're looking for an alien world with a thin atmosphere and little to no water. This sounds pretty much in-line the large rocky moon of a gas giant in the habitable zone.

How large is this gas giant? Well, we cannot get away James Cameron style, with a small gas giant and it's unbelievably large moon. Gas planets are on average 10,000 to 40,000 times heavier than their moons, which means that a gas giant with an Earth-mass moon would need to be on the order of 4,000 to 40,000 Earth-masses, or at least 15 Jupiter masses. Even Saturn is 4,750x heavier than its largest moon, Titan - but for really large moons we have to get into the realm of Brown Dwarfs.

The brown dwarf aspect of the system also helps us to add more heat into the system, in which case, you wouldn't want to be under either the suns or the brown dwarf in the sky.

I suggest you too google the chosen names, cool trivia

Hekate, our moon of a trojan planet gets about 1.41x times our solar irradiation from its parent star - however, since it is only at 4 million km from its host brown dwarf, it finds itself tidally locked, receiving 1.41x times the energy we get from the sun, but most of it is in the form of infrared radiation instead of visible light and UV rays. So while the illumination of the planet is similar to that of Earth's, its infrared irradiation is nearly 4 times that received by the Earth.

The orbital period of Hekate is also about 11 days and 4 hours, which makes for 5 and half days in hot darkness, and 5 and half days in bright hotness.

The brown dwarf appears larger than the star in the sky, and would be its primary heat source.

The problems with this solution are:

  1. Brown Dwarfs cool down over time. In this configuration, the system would only be overwhelmed with heat for the first few hundreds of million years after the system's formation, the brown dwarf would have cooled to a mostly inoffensive heat source at 500 K after 1 billion years, needless to say, the planet would be much more hospitable to life when older than that.
  2. The planet rotation slows down over time. So we might get some "run away from the heat" action when the planet is primitive and young. But if the world is more mature, then the brown dwarf stays fixed in the sky as the planet tidally locks to it.
  3. Extra heat is not the extra radition we're looking for. Of course, we want things to burn in the light of our evil star, but the extra heat is going to get distributed across the planet as the atmosphere spins, making such worlds a Venusian/Wet-Venusian by default.

How one experiences day and night cycles while tidally locked to a brown dwarf

Many bright stars hold companions which are much less luminous than themselves, it is harder to detect those around large bright stars than it is around dimmer less massive stars because of the greater effects of gravitational wobbling, hence the biases in data towards companions of large stars being generally heavy stellar remnants.
This type of system might actually exist in enough abundance as to cover several thousands of systems in the whole galaxy, for all single bright sun-like stars that's 110 candidates per 1000 stars. Even if the chances of this arrangement are 0.1% within this population, we're still looking at some 45 million systems across the Milky Way galaxy.

APPROACH 2: USE MORE STARS


We've previously calculated that even for a decently sized brown dwarf, our main star would have to be larger, and thus bluer, more luminous, and short-lived. So to circunvent this mass problem, we will not inflate a single star, but instead are more smaller stars as a center of mass.
My first example presented two 0.75 solar-mass stars, which amount to 1.5 solar masses, yet, the system is going to live for 25 billion years, and it is only 2/3rds as luminous as our Sun. Can we get away with that kind of arrangement? With that specific one, no, for already specified reasons that is rather very unlikely for planets to form that close to the binary pair as it is.

A modified version using near-solar mass twin stars for a total of 1.88 Msol would push the habitable zone outwards to a minimum distance where planets can form in stable orbits around binaries. Now, because of the distances involved, since the two main stars are so close together and far away from where we want our trojan planet, we will treat them as a single massive object with near double the mass of our Sun, pushing our 4% mass to work with up to 0.075 solar masses, which is inside the realm of red dwarfs even if we take a bit to feed a trojan brown dwarf. Interesting...

If we pack two sun-like stars 0.15 AU apart, then the next safest stable distance for another body would be around 2~3x that distance, at about 0.40 AU, where we could, put another star... or another pair of stars!


What I find interesting in this scenario is that we can get multiple eclipses in a row, or even, a multi-eclipse, because at certain astronomical alignments, more than 1 star can be eclipsed at once if the planet and star postions are just right.


Here is an attempt at showing how the eclipse shadows move as the stars move, notice that the planet zips by multiple shadows at once, the star's orbital plane is inclined 2.72 degrees from the brown dwarf's orbital plane.

You can make an animation like the previous one that by setting up a curve screen about the radius of your planet's/moon's orbit and let the sunlight projects shadows on it. In my case the whole thing spins because I've animated the whole orrery for accuracy.

I find the eclipse scenario quite enticing, as it poses a short window of safe surface activities before everyone needs to cover from intense sunlight. But here are some problems:
  1. There isn't enough shadow time. The transit of a single eclipse under this configuration is ~13 hours, under the right conditons of inclination, the planet might experience a total of ~52 hours or ~2 days of eclipse per orbit, but typically over the year, the eclipses are far too spaced out, or if the shadows overlay we get darker but same-duration eclipses (assuming zero orbital inclination between planet and brown dwarf). Plus, the eclipses only happen across an arc that's 22.5° across the planet's orbit on the night-side of the brown dwarf, due the orbital separation of the stars and distance to this planet, that is only.
  2. The lighting isn't radical enough. At a distance of 1.7 AU, the planet receives a collective 1.11x the solar constant from the parent stars, and an extra 0.92x all in infrared from the brown dwarf, to which it is likely tidally locked, the planet is also very likely to be a Venusian world.
The typical mass ratio in binary systems is 3:1, followed by 2:1 and 5:4, which sounds concerning at first. However, when in a multiple-star system, the tendency is for stars to settle with similar masses as opposed to unequal masses, followed then by a 3:2 ratio. So for this configuration, this system is not at all strange, however, our trojan scenario will be always a subset of those quadruple systems with equal mass, so we can confidently say that it is considerably less than 2 per 1000 stars, or about <<1 billion quadruple systems sporting sun-like components. We'd need to know how many of those systems have planets around them to narrow our subset, given we know at least 200 quadruple systems, from which we know only two that have planets (30 Ari, and Kepler-64 b), the chances drops down to about << 1% of those, that is a small subset of the less than 8 million quadruple systems with planets galaxy-wide. Pretty unlikely to occur in this exact configuration, though we get a lot of near-misses.

But not gonna lie, the dance of multiple stars is pretty hypnotizing to watch from a moving frame of reference...


IN THE NEXT POSTS WE EXPLORE OTHER WAYS TO MAKE CREMATORIA REAL
  • S-type planets in close binaries
  • Dying binaries
  • Luminous black holes
- M. O. Valent, 05/02/2023

HIGHLIGHTS

SCIENCE&ARTWORK | BINARY STAR SUNDIAL | PART 1

IS IT POSSIBLE TO CONSTRUCT A BINARY STAR's SUNDIAL? WHY? So this last week I've been trying to work on my own sundial to settle up ...
